Context: For a study, I have (together with ChatGPT) written an html and JavaScript code to display a panorama picture and allow users to click on the picture on places where they would take a swab. The code stores the coordinates of those swabs, as well as the order of the swabs, so I can later turn it into a heatmap for analysis. The code therefore stores two variables: the final stage with all swabs and an event log. I display this webpage using an iframe in a survey.
Problem: The data is correctly stored in the JS variable and visible in the developer console of the webbrowser when previewing the survey. I want the data to be transferred to a Qualtrics Embedded Data variable upon going to the next page. However, I cannot manage to store that data in a Qualtrics Embedded Data variable. I currently have the following code for the specific question with the panorama iframe:
Qualtrics.SurveyEngine.addOnload(function() {
let swabData = null;
let alreadySubmitting = false;
window.addEventListener("message", function(event) {
console.log("RECEIVED:", event.data);
if (event.data && event.data.eventLog) {
swabData = event.data;
}
});
const nextButton = document.getElementById("NextButton");
nextButton.addEventListener("click", function(e) {
if (alreadySubmitting) return;
e.preventDefault();
const iframe = document.getElementById("swabFrame");
iframe.contentWindow.postMessage("requestData", "*");
const waitForData = setInterval(() => {
if (swabData) {
clearInterval(waitForData);
console.log("Storing data:", swabData);
Qualtrics.SurveyEngine.setEmbeddedData("eventLog", JSON.stringify(swabData.eventLog));
Qualtrics.SurveyEngine.setEmbeddedData("finalSwabs", JSON.stringify(swabData.finalSwabs));
Qualtrics.SurveyEngine.setEmbeddedData("test", "It does not save from here");
alreadySubmitting = true;
Qualtrics.SurveyEngine.navClick(event, 'NextButton');
}
}, 100);
setTimeout(() => {
if (!swabData) {
console.warn("Timeout, continuing anyway");
alreadySubmitting = true;
nextButton.click();
}
}, 1000);
});
});

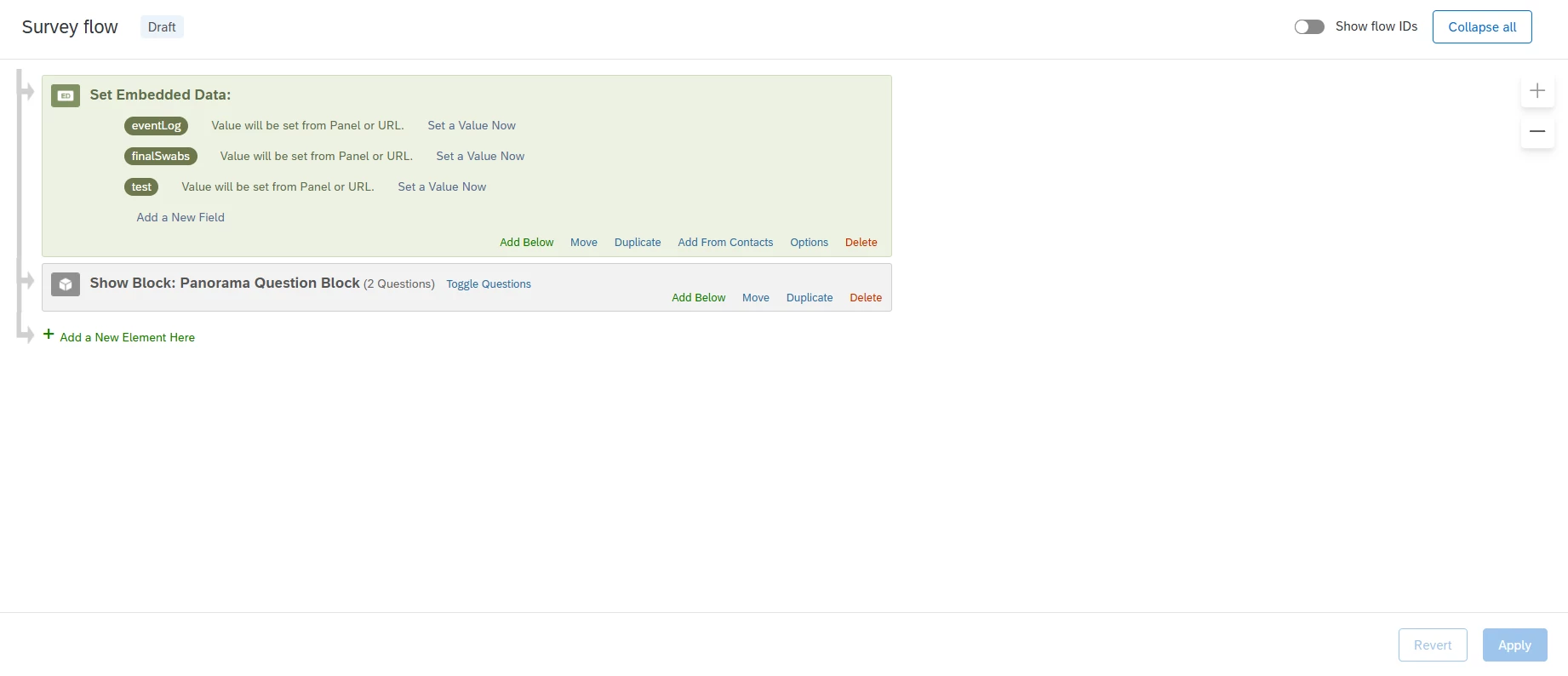

All console.log()s print the correct data in the developer console. The setEmbeddedData on the test value does not save anything either. My Survey Flow looks as follows:
The console in the developer tools shows the following:
SENDING DATA: {eventLog: Array(4), finalSwabs: Array(4)}
RECEIVED: {eventLog: Array(4), finalSwabs: Array(4)}
Storing data: {eventLog: Array(4), finalSwabs: Array(4)}
Just got a page template transaction id 5 but we are on 5. Ignoring new template.
Just got a page template transaction id 5 but we are on 5. Ignoring new template.
What am I doing wrong here?
