Sending personal links to Twilio using Webservice Task for WhatsApp Distribution Automation

​@smithin21 , You’ve got a couple of options here.

Option 1: Native WhatsApp distribution : Qualtrics supports direct WhatsApp distribution. You can find the full setup details here: https://www.qualtrics.com/support/iq-directory/distributions-tab-iq-directory/whatsapp/whatsapp-distributions/

Option 2: Web service–based integration​​​​​​​: If you prefer a custom integration, you can use the Qualtrics Distribution API to generate personal survey links and then pass those links via a web service task (e.g., into WhatsApp or another channel).
API reference here: https://api.qualtrics.com/573e3f0a94888-create-distribution#generate-distribution-links

​@smithin21, This would require a workflow that does the following:

1. Accept data(either endpoint/ Salesforce….etc)
2. XM Directory workflow that adds the contact along with transaction data to the directory
3. Code task that captures the transaction ID(CTR…..) for further use.
4. Adding this transaction to batch(this generates a batchID(BT….)
   (https://api.qualtrics.com/ca5ad8bbec6fb-create-transaction-batch#Path-Parameters)
5. Generating the distribution for this batch(Personal Link)
   (https://api.qualtrics.com/573e3f0a94888-create-distribution#generate-distribution-links)
   Instead of “mailingList” it should be “transaction BatchId” in payload(BT…...)
6. Retrieving the personal link
         (https://api.qualtrics.com/573e3f0a94888-create-distribution#retrieve-generated-links)
7. Using the personal link and the phone number to send to Twilio endpoint.

Hope this helps

​@smithin21,

The batch creation would be required if you want to add any sampling criteria, else, just transaction creation should work fine.

Hi ​@arunxmarchitect & ​@Sowrabh1993, Thanks much for the info, I was able to generate the link, as in added a Total of three Webservice Task’s and the XM Director task to add contact to the mailing list, here is the flow

1️⃣ XM Directory → Add Contact

2️⃣ WebService Task → Create Distribution

3️⃣ WebService Task → Retrieve Link

4️⃣ WebService Task → Send the link and the MetaData to Twilio.

 Now I have run into another issue. In Task 3, I pasted the JSON body exactly as described in Qualtrics API, only replacing the values. However, instead of retrieving the link for the most recent trigger, Task 3 is returning all the data from the contact list, including the previously generated links from the directory contact list.
How can we fix this ?

​@smithin21,

Could you please share the API endpoint that you are using?
Also, I can’t see any JSON body in the above message. (Could you re-paste it please?)(not sure if any issue at my end which did not render it)

Sure ​@Sowrabh1993
Here is the exact end points and payload

Task 2: WebService Task → Create Distribution
Post: https://fra1.qualtrics.com/API/v3/distributions


Headers

Key                              Value
Content-Type     application/json
x-api-token          XXXXXX

Body:
{"surveyId":"SV_9LA7ncFhlRTf1hc","linkType":"Individual","description":"distribution 2026-01-24 00:00:00","action":"CreateDistribution","expirationDate":"2026-12-13T06:00:00Z","mailingListId":"CG_zVxu41hp1djdlOV","directoryId":"POOL_1DJdZLOVIiqGWZT"}

Task 3:  WebService Task → Retrieve Link
GET: https://fra1.qualtrics.com/API/v3/distributions/EMD_dGdjyaj217jhtoi/links?surveyId=SV_9LA7ncFhlRTf1hc

Headers

Key                              Value
x-api-token                XXXXXX


And Task 4

WebService Task → Send the link and the MetaData to Twilio.

This is the exact configuration

​@smithin21, I see that you are passing the entire Mailing list ID while distributing and hence the retrieve API grabs all the contacts.

It would be nice to know a little background of how the contact is received into Qualtrics(bulk/individual)?
How are you adding the contact to XM Directory? transaction based? If this is transaction based using “XM Directory” task, then you need to add the transaction to a batch and then select the batch ID
https://api.qualtrics.com/573e3f0a94888-create-distribution#generate-links-for-transaction-batch

This will be in scenario if the events happen for 1 contact at a time.

​@Sowrabh1993  Hi,

We receive the JSON event from C4C via CPI at our endpoint for each tickets raised in C4C. Once the event is received, the fields are mapped in the XM Directory task. The current flow is as follows:

1. XM Task – Add the contact to the list
2. WebService Task – Create the distribution
3. WebService Task – Retrieve the link
4. WebService Task – Send the data to Twilio

So only one link should be generated for each trigger and that needs to retrieved and sent to Twilio for WhatsApp trigger. Right now Task 3 is returning all the Generated links and sending it to the Twilio Task(4). How do we solve this, can you please tell me how to modify the flow and add or delete…

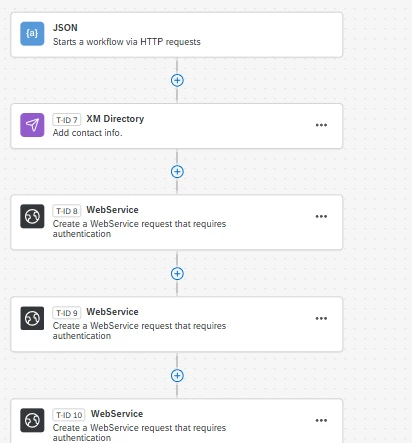

Below is the screenshot of  how the Task (3) test is retrieving and also the screenshot of the flow
